15g/H Ozone Generator Moudle With Power
- Size of tube: 137x150x72 mm
- Size of Transformer: 200×115 mm
- O3 output: 5g/hour (under dry Air circumstance, Oxygen feed to increase ozone output (up to 7-8 g/hr))
- Ozone concentration: 100 ~ 120mg/L (oxygen amount, the source of 0.2-0.4 m3 / HR)
- Air source (for – 40 ° c) topless, concentration of 40mg/L amount, 0.4-0.6 m3 / HR
- Cooling: Air Cooling
- Input: AC: 220V, 110V
- Power: 120W (adjustable)
- Frequency: 16 khz
- Tube Material: high quality 96 Ceramic
- Output: 3.1-3.5kv
Description
Product Description:

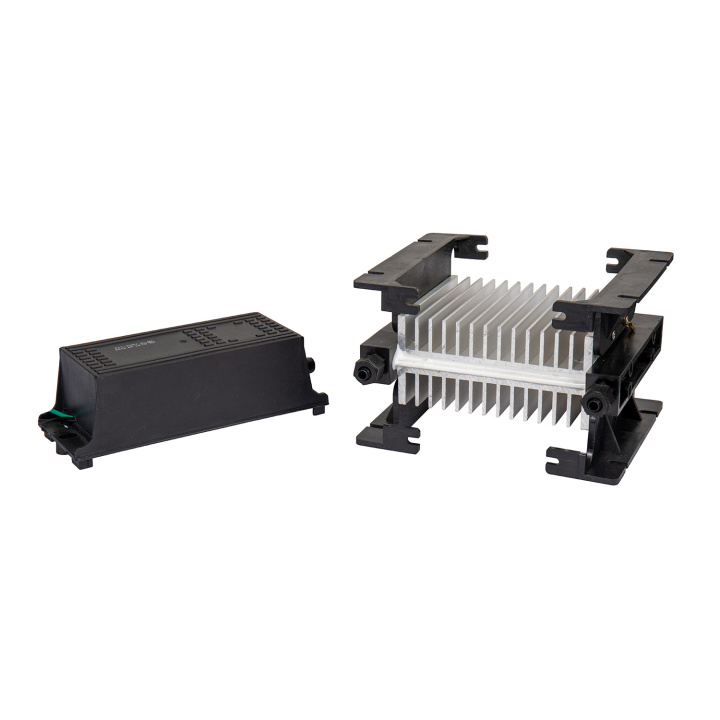

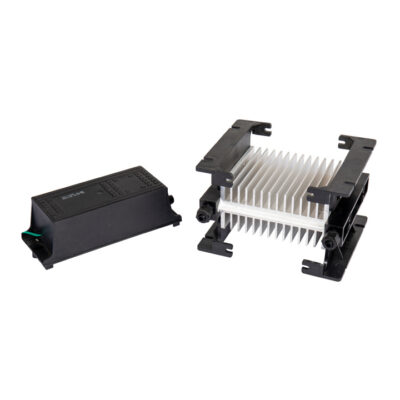

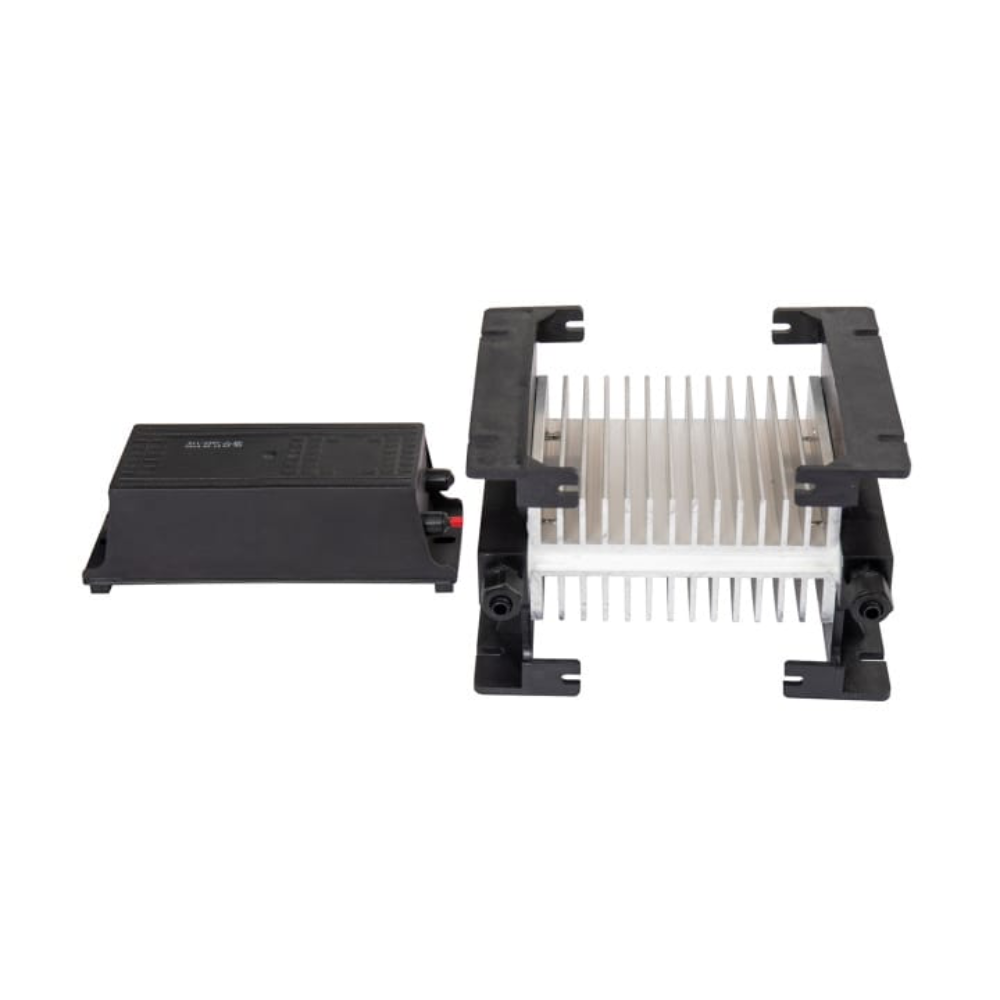

This kit includes a 15g/h double ceramic plate ozone generator and a 150W PCB ozone transformer, specifically designed for applications requiring high concentration and compact size.
Product Advantages:
- Double Ceramic Plate Design: The corona is generated between two ceramic plates, ensuring that the produced ozone gas does not come into contact with other metals, effectively preventing contamination.
- Compatible with Pure Oxygen: The double ceramic plate design allows the use of pure oxygen as a gas source, increasing ozone concentration to better meet special requirements.
- PCB Ozone Transformer: The transformer is mounted on a PCB, providing a reliable power source to ensure stable ozone output.
- Wide Applications: Suitable for dental care, dermatology treatment, beauty, saunas, ozone oil preparation, laboratories, and medical devices that require high concentration and can only be cooled by air.
Notes:
- Please ensure to follow safety guidelines and the operation manual during use.
