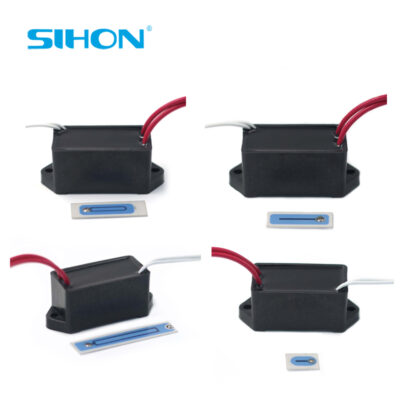

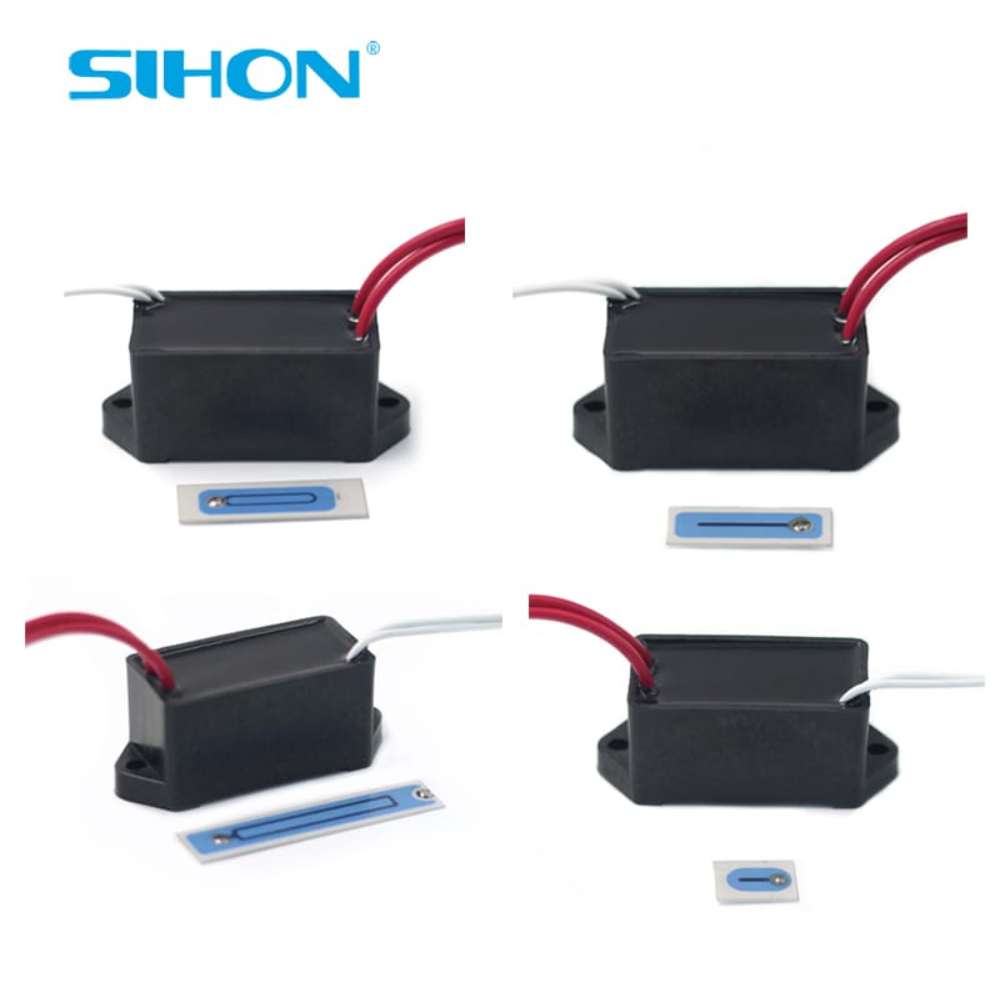

Ozone Plate With Power Moisture Proof, Long Life

  • Various specifications:50mg / 100mg / 200mg / 500mg / ozone plate



  • Advantages: moisture-proof and long life more than 3000 hours



  • Material: Ceramic
N/A
Chat on WhatsApp

Description

Long Life: The design and material optimization allow the ozone plates to maintain high efficiency over an extended period, reducing the need for frequent replacements and saving costs.

Moisture Resistance: Features good moisture resistance, helping it operate normally in humid environments and preventing performance degradation or damage due to moisture.

Efficient Ozone Generation: Effectively generates ozone, enhancing the disinfection of air and water, suitable for various applications such as air purification and food cleaning.

Environmental Friendliness: Uses ozone as a disinfectant, leaving no harmful chemical residues, in compliance with environmental standards.

Compact Size and Easy Installation: With a compact design, it can be easily integrated into various devices, making installation simple and highly adaptable.

Low Energy Consumption: The energy consumption during operation is relatively low, reducing operating costs and making it suitable for long-term use.

Wide Range of Applications: Can be used in multiple fields, including home, commercial, and industrial settings, improving the quality of air and water.

PICTURESPECIFICATION

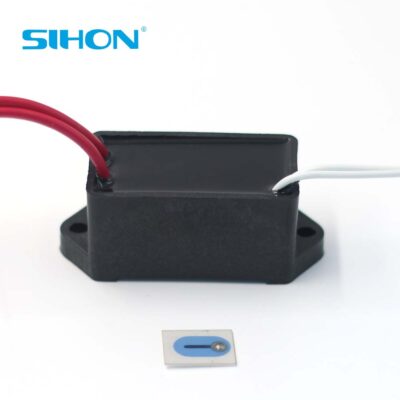

50mg



 Plate Size:25*15mmPower Supply Size:80*31*32mm
Ozone Output :50mg/h
Input Voltage:220V/110V/24V/12V
Frequency:20KHz
Material:ceramic
Power (W):10W
Output Voltage:2.8-3.2KV

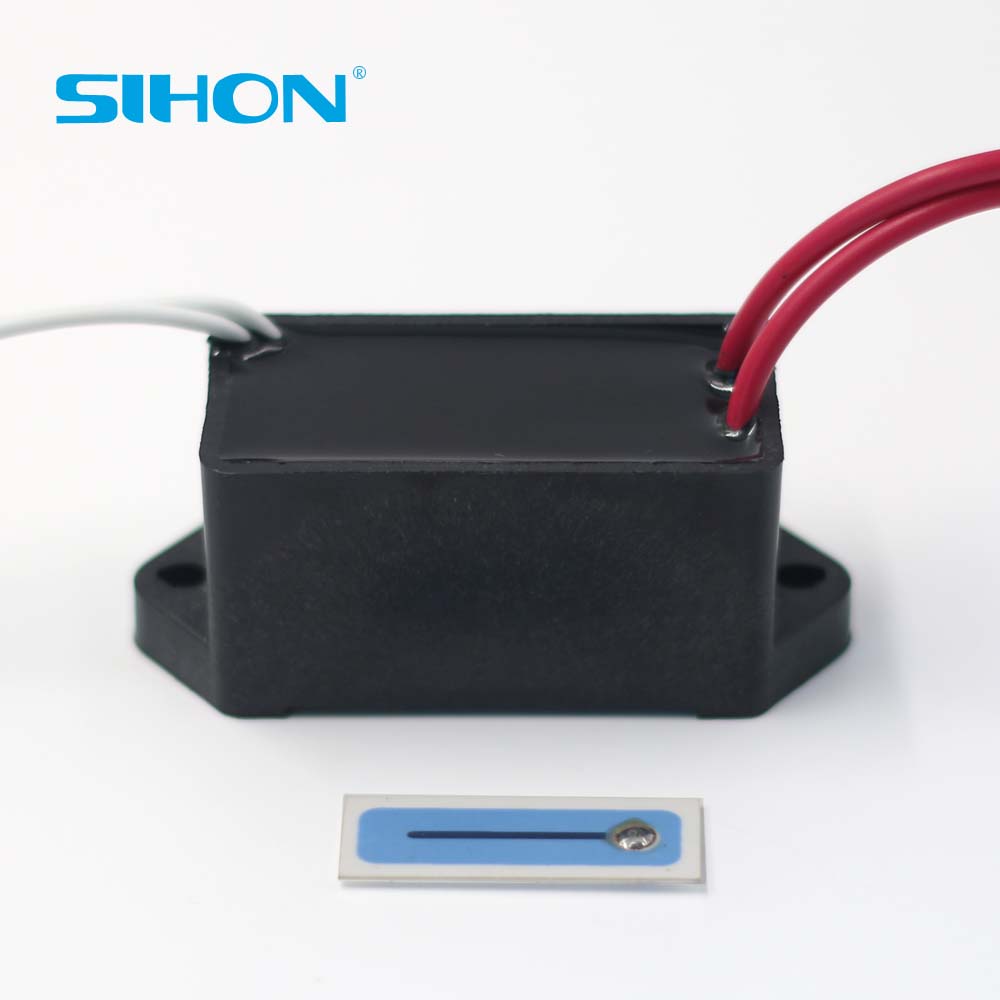

100mgPlate Size:37*14.8mm
Power Supply Size:80*31*32mm
Ozone Output :100mg/h
Input Voltage:220V/110V/24V/12V
Frequency:29.5KHz
Material:ceramic
Power (W):4.5W±10%
Output Voltage:2.8-3.2KV

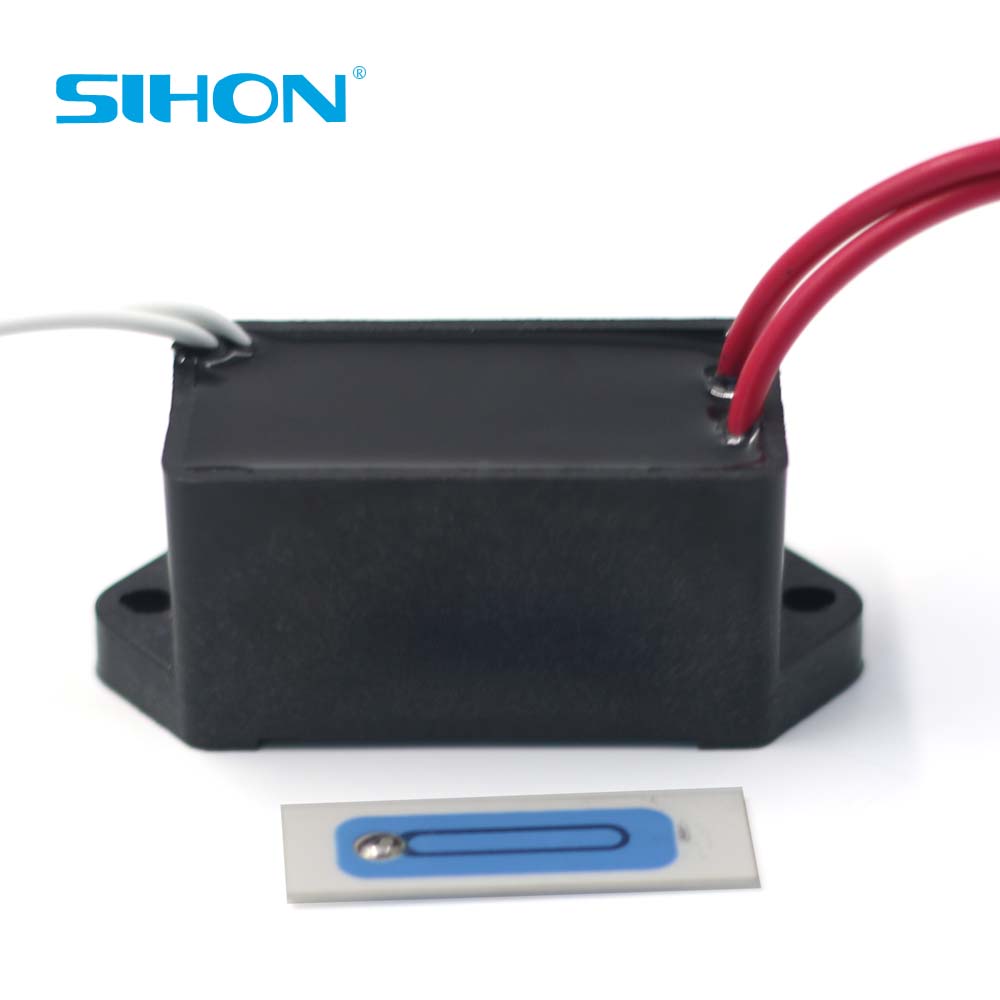

 200mgPlate Size:45*15mm
Power Supply Size:80*31*32mm
Ozone Output :200mg/h
Input Voltage:220V/110V/24V/12V
Frequency:16KHz
Material:ceramic
Power (W):5-6W
Output Voltage:2.8-3.2KV

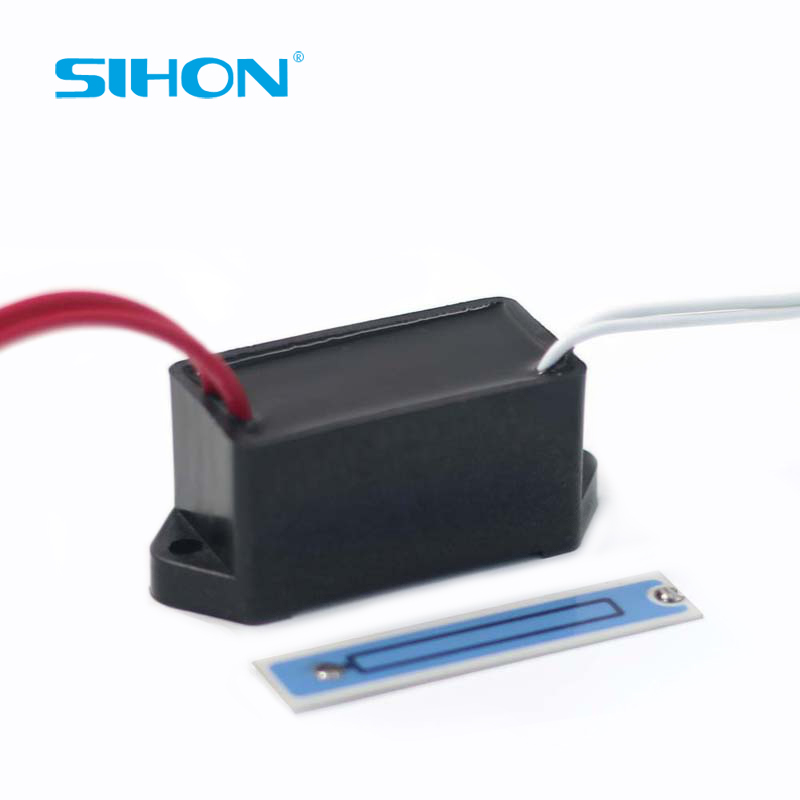

500mg Plate Size:70*15mmPower Supply Size:80*31*32mm
Ozone Output :500mg/h
Input Voltage:220V/110V/24V/12V
Frequency:18KHz
Material:ceramic
Power (W):12W
Output Voltage:3.1KV-3.5KV

Additional

Ozone Production

50mg, 100mg, 200mg, 500mg
